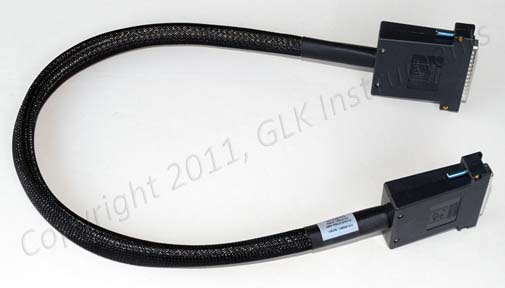

High Voltage Interface Cable for the Fluke 5725A Amplifier

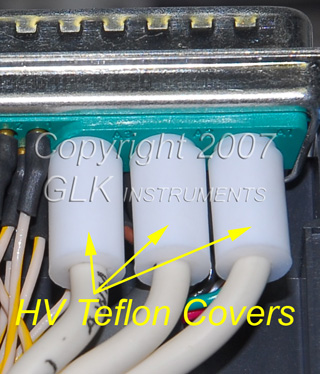

This cable connects the Fluke 5725A Amplifier to the Fluke 5700A / 5720A Series II Calibrators. Our cable is fully shielded with an inner silver braid over all conductors and an outer nylon braid for abrasion resistance. In addition, the digital I/O control lines are shielded from the analog signal lines. The connectors hoods are extra deep to provide smooth transition from the high voltage pins to the cable exit. The connectors hoods are made from a conductive, composite material with low volume resistivity of 1 ohm-cm or less, which provides additional EMI/RFI shielding. The high voltage wire and pin connections are terminated using custom-machined teflon covers over the solder joint to increase high voltage, high frequency performance over the standard connector pin (see picture below). Standard length is 40 inches (1 meter). Other lengths are available upon request.
Order Part Number: 859897
